Automatic Bar Feeder Parts BARLOAD

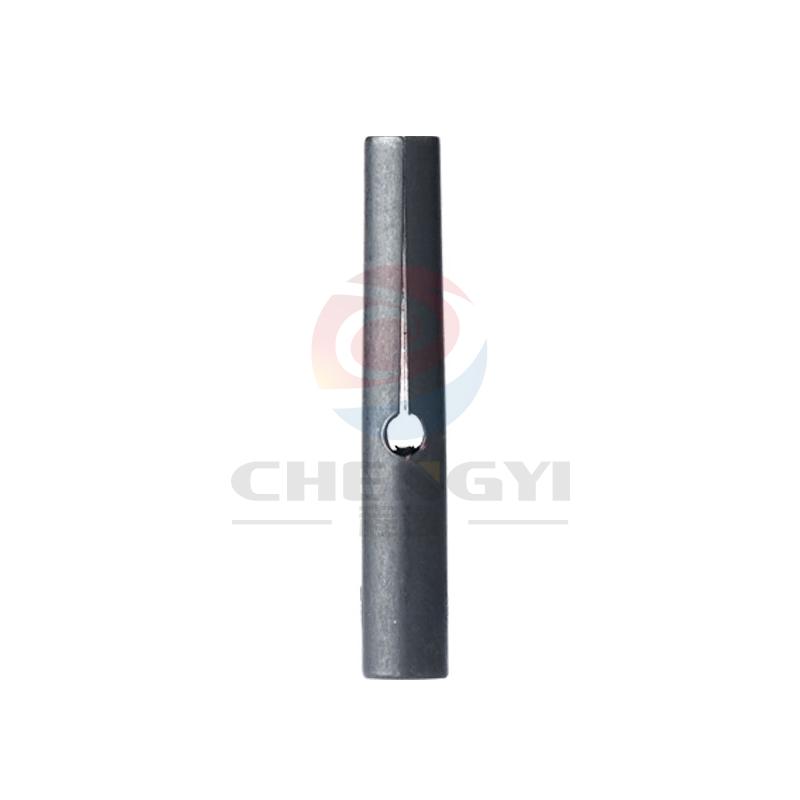

BARLOAD 7# Bar Feed Collets (Finger Chuck)

Model : BARLOAD 7#
  • Product Specification

    Bar size: Φ1.3mm～Φ7.0mm

    Product Code Model ID OD L Tooth gaugeL
    FB05 7# 1.3~6.0mm 7mm 50mm M4P0.7
    FB05 7# 1.3~6.5mm 8mm 50mm M4P0.7
    FB05 7# 6.6~7.0mm 9mm 50mm M4P0.7
