Japan Rotary & Static Tool Holder CITIZEN

Citzen Angle Adjustment Positive Power Holder

Model : GSE3607
  • Product Specification



    Model GSE3607
    CITIZEN Number GSE3607
    Ratio 1/ 1
    Maximum rpm 10000rpm
    Max collet diameter 7mm/ 7mm
    Angle adjustment range 0°~30°
    Using a Collet Spindle: AR11-A, ER11-A
    Sub-spindle: AR11-A, ER11-A
    Applicable models L12VII

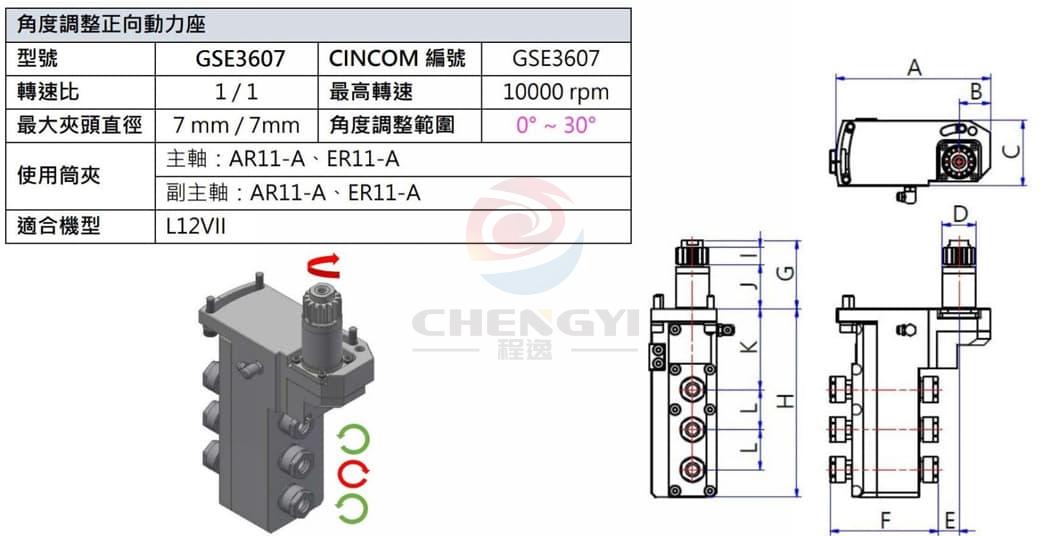

    Model A B C D E F G H I J K L
    GSE3607 115.5 23.5 49 Ø25 15.7 80.6 51 141 13 33 60.5 30

    unit: mm
