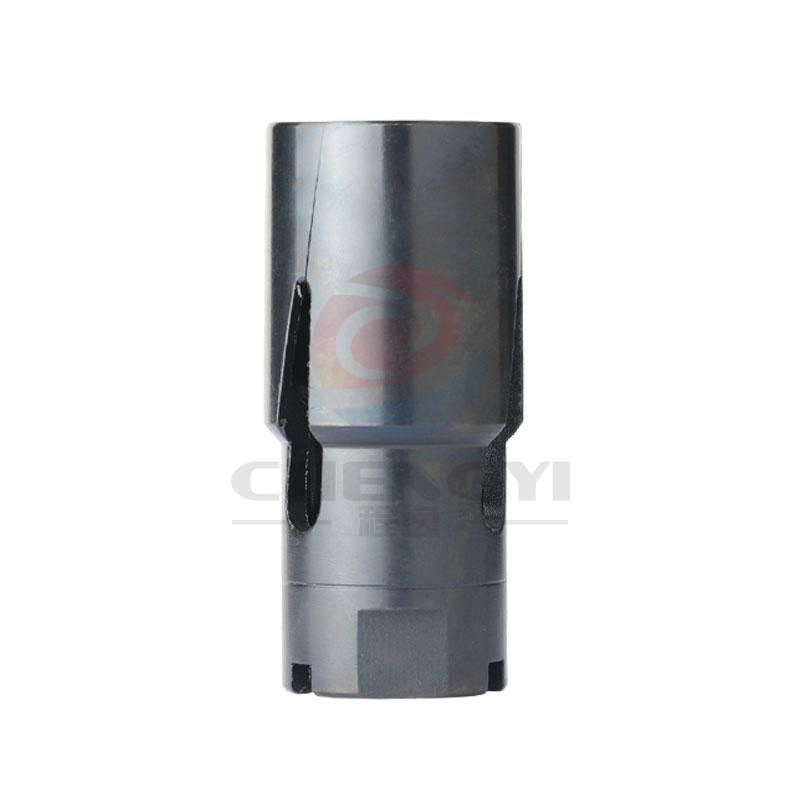

IEMCA 38# Bar Feed Collets (Finger Chuck)

Model : IEMCA 38#
  • Product Specification

    Bar size: Φ3.0mm～Φ35.0mm

    Model Bar size Finger outside diameter Total length Regulatory teeth
    20# 3.0~18.0mm 20mm 60mm M10P1.0
    25# 16.5~23.0mm 25mm 60mm M10P1.0
    27# 16.5~23.0mm 27mm 60mm M10P1.0
    32# 23.5~28.0mm 32mm 70mm M17P1.0
    35# 28.5~32.0mm 35mm 80mm M25P1.5
    37# 31.0~34.0mm 37mm 80mm M25P1.5
    38# 31.0~35.0mm 38mm 80mm M25P1.5
